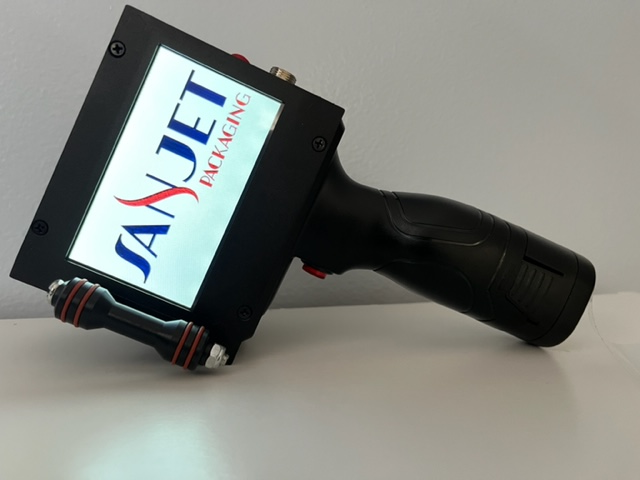

Sanjet BPFH 23
Technical Specs
Sanjet BPFH 23
Print up to one-inch tall barcodes, logos, letters, numbers, symbols
Print 1 to 8 lines of text
Maintenance free thermal inkjet technology
Print on all types of material such as plastic, glass, pipe, metal, aluminum, boxes, paper, concrete, etc.
Touch screen display
Selectable languages include English, Chinese and Traditional Chinese
Print heights ranging from 1mm to 25.4mm (one inch)
300 dpi high resolution print quality
Ink type is black, solvent based
Print static and variable information such as text, numbers, symbols, QR codes, barcodes, logos, images, graphics, etc.
Available barcode formats include GS1 128, UPC-A, UPC-E, Datamatrix, EAN-13, Code 128, Code-39, Code-93
Print date codes, lot codes, batch codes, sequential numbering, and more
Lightweight handheld printer
Specifications
|
Nozzle |
TIJ thermal inkjet nozzle |
|
System |
Linux |
|
CPU |
Quad 1.4GHz |
|
Screen |
4.3 inches |
|
Operation |
Touch screen |
|
Interface |
USB |
|
Language |
Chinese, Traditional Chinese, English |
|
Printing height |
Minimum 2mm,Maximum 25.4mm |
|
Resolution |
300dpi |
|
Printing distance |
2-5mm |
|
Ink type and volume |
Black water based 42ml, Solvent black 42ml |
|
Ink color |
Black |
|
Printing material |
Carton, pipe, plastic, woven bag, cable, Stone, board, wood, metal |
|
Printing content |
Chinese/English text, number, symbol, QR code, Bar code, image, date, variable data, variable QR code |
|
Battery |
14.8VDC, 2600mAh |
|
Printer material |
Metal+ABS |
|
Adapter |
AC100~240V input, DC16.8V/2A output |
|
Dimension |
23.9×12.3×11.8cm(Measuring the maximum size) |
|
Weight |
1.12KG(include battery and ink cartridge) |
|
Working environment |
Temperature 0-45℃(20-30℃ the best), humidity40-60%RH |
