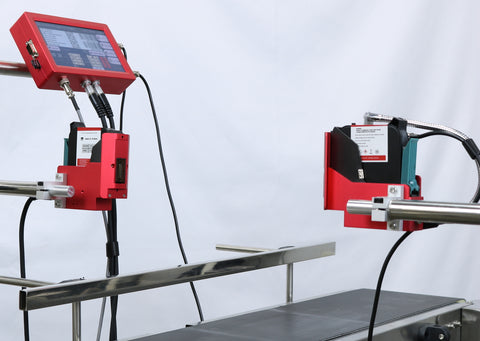

Sanjet BPF 22
The Sanjet BPF 22 is a Thermal inkjet printer. This 2 Printhead system (unstitched) can print up to 1″ Character height per printhead. It’s great for coding your product with high-resolution alpha-numeric text, barcodes, or sell-by codes. The software includes 9 languages. Inks available in Black and Green in porous and non-porous formulations.
Technical Specs
Printer BPF 22
Series Thermal Inkjet Model 22
Nozzle TIJ 2.5 Thermal Inkjet nozzle
Operating system Linux CPU Quad-core 1.4Hz
300DPI max to 600DPI max
Screen size 7 inch
Password protection
Languages: English, Chinese, Arabic, Korean, Italian, Russian, Spanish, Portuguese, Turkish
Shape features Aluminum alloy
Dimension Controller: 186 * 116 * 42mm,
Print nozzle: 138*96*103 mm
Net weight Controller: 0.58 KG,
Print nozzle:0.5KG Printing height 50.8mm
Printing distance 2-5mm
Print content Text, time and date, batch number, serial number, logo, QR code, barcode
Storage more than 1000 messages
Printing length 2000 characters for each message with no limitation to physical length
Printing speed 70m/min
Power consumption 24 W Voltage 120V±20% AC input, 30V/10A DC output
Working environment Temperature:0 – 45℃（best 20-30℃）
Humidity: 40% – 60% Rh
Printing material paper, cardboard, wood, concrete, fabrics, fiberglass plastic (PET, HDPE, PVC, LDPE, other), glass, aluminum, stainless, carbon steel, and many others.
