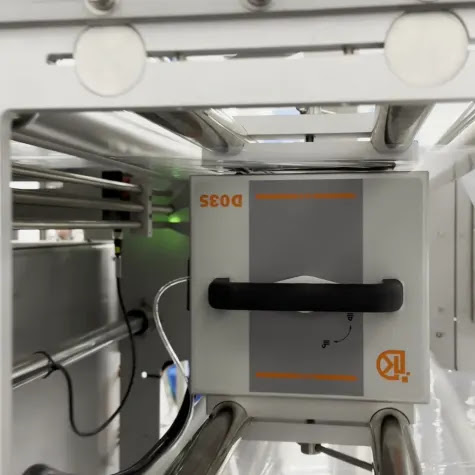

D03S & D05S
Features
- Print Contents: Bar Code, QR Code, Image, Variable Information, etc.
- Modes: Intermittent And Continuous Mode Combined
- Load New Prints: USB or LAN
- Print Speed: Continuous Max. 40 Meters/minute; Intermittent: 450PP
- Consumable: Thermal Transfer Ribbon
- Optional: , Encoder, TTR Ribbon, etc.
Technical Specifications
| Model | D03S | D05S |
|---|---|---|
| Print Head | Kyocera, 32mm; 300DPI | Kyocera, 53mm; 300DPI |
| Print Area | Intermittent: 32mm*60mm & Continuous: 32mm*100mm | Intermittent: 53mm*70mm & Continuous: 53mm*190mm |
| Ribbon Size | 33mm*500m | 53mm*600m |
| Print Frequency | Intermittent: up to 350PPM & Continuous: up to 40 meters/ minute | Intermittent: up to 350PPM & Continuous: up to 40 meters/ minute |
| Environmental Operating Temperature | 0-40℃ & 32-104℉ | 0-40℃ & 32-104℉ |
| Relative Humidity | 10%-95% (non-condensing) | 10%-95% (non-condensing) |
| Power | AC110~220V, 50/60Hz, 150W | AC110~220V, 50/60Hz, 150W |
| Air Supply | 6bar/90PSI (MAX) dry uncontaminated | 6bar/90PSI (MAX) dry uncontaminated |
| Weight | Print head: 18.7lbs / 8.5kg Control box: 4.4lbs / 2.0kg |
Print head: 19.8lbs / 9.0kg Control box: 4.4lbs / 2.0kg |
| Dimensions (L*W*H) | Print Unit: 188mm*190mm*180mm | Print Unit: 210*210*180mm |
