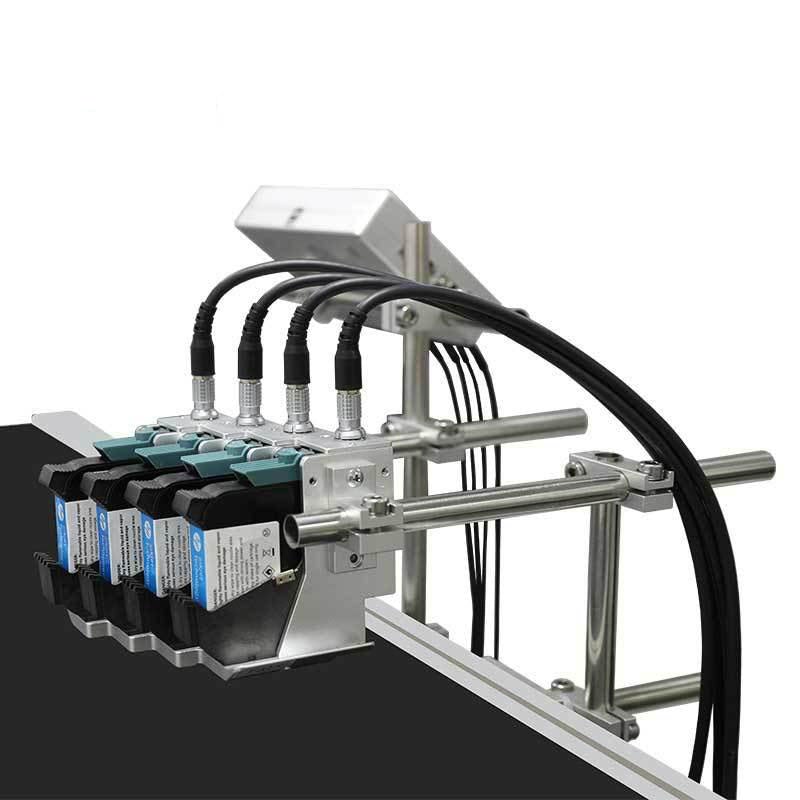

Sanjet BPT 104
The Sanjet BPT104 Printer comes equipped with
(4) half-inch printheads and is great for marking colors (black, white, yellow, blue, green, and red) on porous, semi-porous, and non-porous substrates. Print on glass, plastics, metal, boxes, and much more. Print high-resolution alphanumeric text, barcodes, logos, static and variable information. The Sanjet BP104 Printer also features built-in counters for marking date and time codes, lot codes, batch codes, and much more!
Technical Specs
| Nozzle | TIJ 2.5 Thermal foaming nozzle |
| Operating system | Linux |
| CPU | Quad core 1.4Hz |
| DPI | 600 maximum |
| Screen size | 7 inches |
| Protection | Strongly Protected with Password |
| Language | Multiple |
| Shape features | Aluminum alloy |
| Dimension | Controller: 185 * 125 * 34mm, Print nozzle: 138*100 *136 mm |
| Net weight | Controller: 0.58 KG, Print nozzle:0.28*4KG |
| Printing height | 50.8mm |
| Printing distance | 2-5mm |
| Print content | Text, time, batch number, serial number, logo, QR code, barcode |
| Storage | the system can store more than 1000 message (external USB make the information transfer in a free way) |
| Printing length | 2000 characters for each message, no limitation on length |
| Printing speed | 70m/min |
| External interface | USB, Photoelectric interface, RS232 |
| Power consumption | 24 W |
| Voltage | 100-240V 50-60 HZ 16.8A/2A |
| Working environment | Temperature:0 – 45℃（best 20-30℃）; Humidity: 40% – 60% Rh |
| Printing material | board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc. |
