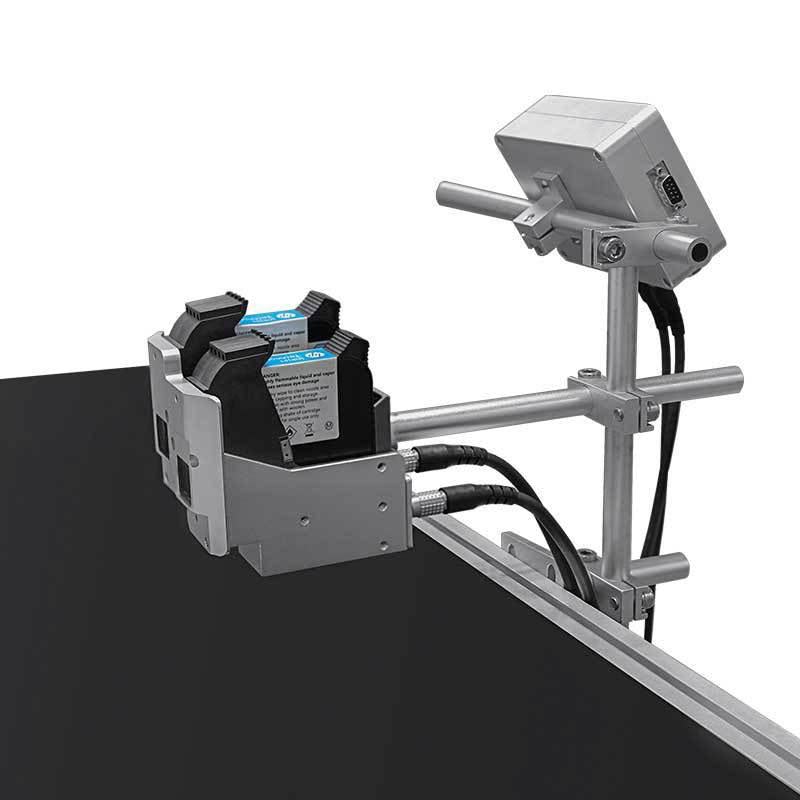

Nozzle TIJ 2.5 Thermal foaming nozzle

Operating system Linux

CPU Quad core 1.4Hz

DPI 600 maximum

Screen size 7 inches

Password protection

Language : Multiple

Shape features Aluminum alloy

Dimension Controller: 220 x 114 x130 mm, Print head: 90*110*107mm

Net weight Controller: 0.5KG, Print head: 0.5KG

Printing height 12.7mm per print head

Printing distance 2-5mm

Print content Text, time, batch number, serial number, logo, QR code, barcode

Storage the system can store more than 1000 message (external USB make the information transfer in a free way)

Printing length 2000 characters for each message, no limitation on length

Printing speed 70m/min

External interface USB, Photoelectric interface, RS232

30 W Power Consumption

Voltage: AC: 100-240V 50/60 Hz: DC 16.8A/2A

Working Environment Temperature:  32 -113 F; Humidity: 40% – 60% Rh

Printing material board, carton, stone, pipe, cable, metal, plastic product, electronic, the fiber board, light steel keel, aluminum foil, etc.
